PTR



¡Pregunta a tu ejecutivo por nuestros precios a mayoreo!
Fabricamos perfil tubular frío y galvanizado a largos especiales.

P.T.R. Perfil Tubular Rectangular, es una barra rectangular hueca, comúnmente utilizada para armar estructuras, barandales, marcos, implementos agrícolas, etc. Siempre brindamos precios competitivos.



PTR Cuadrado

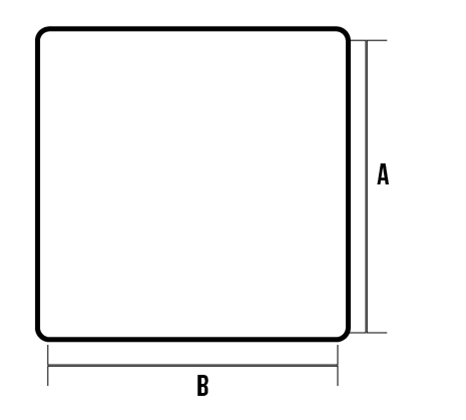

Dimensiones
AxB		 Calibre Espesor Largo Pieza x Paquete Kg/m Norma NEG GVZ GVZ
VRD		 PINT
1/2″ x 1/2″ 20 0.036 6.00 231 0.34 A513 * * * *
18 0.048 6.00 231 0.44 A513 * * * *
5/8″ x 5/8″ 20 0.036 6.00 252 0.43 A513 * * * *
18 0.048 6.00 252 0.56 A513 * * * *
3/4″ x 3/4″ 20 0.036 6.00 121 0.52 A513 – –
18 0.048 6.00 121 0.68 A513 –
16 0.060 6.00 121 0.84 A513
– – –
14 0.075 6.00 121 1.02 A513
– – –
1″ x 1″ 20 0.036 6.00 100 0.70 A513 –
18 0.048 6.00 100 0.92 A513
16 0.060 6.00 100 1.14 A513 –
14 0.075 6.00 100 1.40 A513 – –
13 0.090 6.00 100 1.65 A513 – – –
12 0.105 6.00 100 1.90 A513 – – –
11 0.120 6.00 100 1.94 A500°B – – –
10 0.135 6.00 100 2.12 A500°B – – –
1 1/4″ x 1 1/4″ 20 0.036 6.00 81 0.88 A513 – –
18 0.0485 6.00 81 1.16 A513 –
16 0.060 6.00 100 1.44 A513 – – –
14 0.075 6.00 100 1.78 A513 – –
12 0.105 6.00 100 2.42 A513 – – –
1 1/2″ x 1 1/2″ 20 0.036 6.00 49 1.06 A513 – –
18 0.048 6.00 49 1.40 A513 –
16 0.060 6.00 100 1.74 A513 – – –
14 0.075 6.00 64 2.15 A513 – –
12 0.105 6.00 64 2.95 A513 – – –
11 0.120 6.00 64 3.15 A500°B – – –
9 0.150 6.00 64 3.79 A500°B – – –
2″ x 2″ 18 0.048 6.00 64 1.89 A513 –
16 0.060 6.00 64 2.35 A513 – – –
14 0.075 6.00 64 2.91 A513 – –
12 0.105 6.00 64 4.01 A513 – – –
11 0.120 6.00 64 4.36 A500°B – – –
10 0.135 6.00 64 4.84 A500°B – – –
9 0.150 6.00 64 5.31 A513 – –
7 0.180 6.10 40 6.43 A500°B – – –
1/4″ 0.250 6.10 40 8.04 A500°B – – –
2 1/2″ x 2 1/2″ 14 0.075 6.00 42 3.67 A513 – –
12 0.105 6.00 36 5.07 A513 – – –
11 0.120 6.00 36 5.57 A500°B – – –
10 0.135 6.00 36 6.20 A500°B – – –
7 0.180 6.10 36 8.34 A500°B – – –
1/4″ 0.250 6.10 36 10.57 A500°B – – –
3″ x 3″ 14 0.075 6.00 42 4.42 A513 – – –
11 0.120 6.10/ 12.20 36 6.78 A500°B – – –
9 0.150 6.10 25 8.33 A500°B – – –
7 0.180 6.10 25 10.24 A500°B – – –
1/4″ 0.250 6.10/ 12.20 25 13.10 A500°B – – –
3 1/2″ x 3 1/2″ 11 0.120 6.10 36 7.99 A500°B – – –
9 0.150 6.10 25 9.85 A500°B – – –
7 0.180 6.10 25 12.14 A500°B – – –
1/4″ 0.250 6.10/12.20 16 15.63 A500°B – – –
4″ x 4″ 14 0.075 6.00 30 5.93 A513 – – –
1/8″ 0.125 6.10/12.20 30 9.21 A500°B – – –
9 0.150 6.10 25 11.36 A500°B – – –
3/16″ 0.187 6.10/12.20 25 14.04 A500°B – – –
1/4″ 0.250 6.10/ 12.20 16 18.16 A500°B – – –
5″ x 5″ 1/8″ 0.125 6.10/12.20 20 11.63 A500°B – – –
3/16″ 0.187 6.10/12.20 16 18.96 A500°B – – –
1/4″ 0.250 6.10/12.20 12 23.22 A500°B – – –



NEG = Sin fondear y Con Aceite/ También disponible en Largo Especial bajo pedido
GVZ = Galvanizado Natural
GVZ VRD= Galvanizado Verde
PINT= Pintado
* = Fabricacion especial bajo pedido



PTR Rectangular



Dimensiones
AxB		 Calibre Espesor Largo Pieza x Paquete Kg/m Norma NEG GVZ GVZ
VRD		 PINT
1″ x1/2″ 18 0.048 6.00 120 0.68 A513 – –
1 1/4″ x 3/4″ 20 0.036 6.00 99 0.70 A513 – –
18 0.048 6.00 99 0.92 A513 – – –
1 1/2″ x 1/2″ 20 0.036 6.00 98 0.70 A513 * * * *
18 0.048 6.00 98 0.92 A513 * * * *
1/2″ x 1″ 20 0.036 6.00 84 0.88 A513 * * * *
18 0.048 6.00 84 1.16 A513 * * * *
16 0.060 6.00 100 1.44 A513 * * * *
14 0.075 6.00 84 1.78 A513 * * * *
11 0.120 6.00 63 2.55 A513 * * * *
1 3/4″» x 3/4″ 20 0.036 6.00 84 0.88 A513 – –
18 0.048 6.00 84 1.16 A513 – – –
2″ x 1″ 20 0.036 6.00 50 1.06 A513 – –
18 0.048 6.00 50 1.40 A513 –
14 0.075 6.00 80 2.15 A513 – –
11 0.120 6.00 80 3.15 A500°B – – –
2 1/4″ x 3/4″ 20 0.036 6.00 55 1.06 A513 –
18 0.048 6.00 55 1.40 A513 – – –
2 1/2″ x 1 1/4″ 20 0.075 6.00 54 1.34 A513 – –
18 0.075 6.00 54 1.77 A513 – – –
14 0.075 6.00 – – A513 – – –
2 1/2″» x 1 1/2″ 14 0.075 6.00 48 2.91 A513 * – – –
3″ x 1″ 18 0.048 6.00 48 1.89 A513 * * * *
16 0.060 6.00 48 2.35 A513 * * * *
14 0.075 6.00 48 2.91 A513 * * *
11 0.120 6.00 48 4.36 A513 * * * *
10 0.135 6.00 48 A513 * * * *
3″ x 1 1/2″ 20 0.036 6.00 48 1.61 A513 – –
18 0.048 6.00 70 2.13 A513 –
14 0.075 6.00 70 3.29 A513 – –
11 0.120 6.00 70 4.90 A500°B – – –
3″ x 2″ 14 0.075 6.00 49 3.67 A513 – – –
11 0.120 6.00 42 5.57 A500°B – – –
10 0.135 6.00 42 6.20 A500°B – – –
7 0.180 6.10 36 8.34 A500°B – – –
1/4″ 0.250 6.10 36 10.57 A500°B – – –
4″ x 1 1/2″ 14 0.075 6.00 35 4.04 A513 – – –
4″ x 2″ 14 0.075 6.10 40 4.42 A513 – – –
11 0.120 6.10 32 6.78 A500°B – – –
9 0.150 6.10 32 8.33 A500°B – – –
7 0.180 6.10 28 10.24 A500°B – – –
1/4″ 0.250 6.10/ 12.20 20 13.13 A500°B – – –
4″ x 3″ 14 0.075 6.00 40 5.18 A513 – – –
11 0.120 6.10 30 7.99 A500°B – – –
9 0.150 6.10/ 12.20 25 9.85 A500°B – – –
7 0.180 6.10 20 12.14 A500°B – – –
1/4″ 0.250 6.10/12.20 16 15.63 A500°B – – –
5″ x 2″ 11 0.120 6.10 20 7.99 A500°B – – –
7 0.180 6.10 20 12.14 A500°B – – –
5″ x 3″ 14 0.075 6.00 35 5.93 A513 – – –
1/8″ 0.125 6.10/ 12.20 35 9.21 A500°B – – –
3/16″ 0.187 6.10/ 12.20 24 14.03 A500°B – – –
1/4″ 0.250 6.10/ 12.20 18 18.16 A500°B – – –
6″ x 2″ 14 0.075 6.00 16 5.93 A513 – – –
1/8″ 0.125 6.10/ 12.20 16 9.21 A500°B – – –
3/16″ 0.187 6.10/ 12.20 16 14.03 A500°B – – –
1/4″ 0.250 6.10/ 12.20 16 18.16 A500°B – – –
6″ x 4″ 1/8″ 0.125 6.10/ 12.20 20 11.63 A500°B – – –
3/16″ 0.187 6.10/12.20 20 17.85 A500°B – – –
1/4″ 0.250 6.10/ 12.20 12 23.22 A500°B – – –
8″ x 3″ 1/8″ 0.125 12.20 12 13.61 A500°B – – –
3/16″ 0.187 12.20 12 20.00 A500°B – – –



NEG = Sin fondear y Con Aceite/ También disponible en Largo Especial bajo pedido
GVZ = Galvanizado Natural
GVZ VRD= Galvanizado Verde
PINT= Pintado
* = Fabricacion especial bajo pedido
